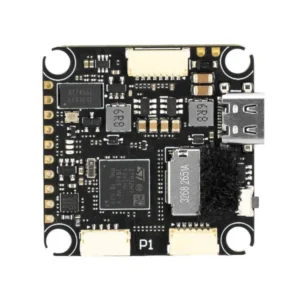

TBS Lucid H7 Flight Controller NDAA Compliant

Description

Unleash the full potential of your drone with the NDAA Compliant TBS Lucid H7 Flight Controller — engineered for peak performance and versatility. Powered by the STM32H743VIH6 MCU running at 480MHz, it seamlessly supports Betaflight, ArduPilot, and INAV, ensuring smooth control and precision. Equipped with dual ICM42688 gyros for ultimate stability, 7 UARTs, dual camera inputs, and DJI FPV OSD compatibility, the Lucid H7 adapts to any build — freestyle, racing, or cinematic. With robust 13 PWM outputs, a dedicated LED pad, and wide 2–8S LiPo support, this flight controller is designed for both seasoned pilots and ambitious newcomers. NDAA-Compliant for added security and compatibility.

Features
Built for racing and freestyle
Plug-and-Play Connectivity
User-Friendly Design
Supports 4-in-1 ESCs
Versatile Application
High Compatibility
Specifications
Analog Inputs: 6 ADC channels (VBAT, Current, RSSI, Analog AirSpeed, Vbat2, Cur2)
MCU: STM32H743VIH6 running at 480MHz, with 1MB RAM and 2MB Flash
LED Indicators: 3 LEDs — Blue and Green for FC status, Red for 3.3V power
Blackbox (BB): Data logging equipped with a MicroSD card slot (SDIO)
PWM Outputs: 13 channels, including a dedicated “LED” pad
Power Control: Switch for filtered 5V/Vbat output power
Dual Camera Input: Switchable inputs for two cameras
UARTs: 7 total (1, 2, 3, 4, 6, 7, 8), signal inversion ready
USB Interface: Type-C connector (USB 2.0 standard)
DJI FPV OSD: Compatible via any spare UART port
Barometer: Infineon DPS310, connected via I2C2
Breakout: SPI3 breakout available
Gyro: ICM42688 x2 (duo gyro)
OSD Chip: AT7456E (SPI2)
I2C Buses: 2 available
CAN Bus: 1 available
JST Connectors:
1x JST-SH1.0 8-pin (Vbat/G/Curr/Rx8/S1/S2/S3/S4)
1x JST-GH1.25 4-pin (5V/CAN-H/CAN-L/Ground)

POWER

Power Consumption: 200mA @ 5V with Betaflight, 150mA @ 5V with ArduPilot
Voltage Support: ADC Vbat2 pad supports up to 36V (1K:10K voltage divider)
BEC: 5V 2A continuous (3A max) & 9V 2A continuous (3A max)
Input Voltage: 6–36V (2 to 8S LiPo)
LDO 3.3V: Supports up to 200mA
Includes
1x TBS Lucid H7 FC – ICM42688 – NDAA
1x FC-to-ESC cable (plug & play)
1x DJI O3 cable (plug & play)
4x M3 rubber dampers
1x Hardware Kit
