TBS UNIFY EVO
THE SWISS ARMY KNIFE OF VIDEO TRANSMITTERS
We packed all the features that we could into the smallest form factor possible. When we set out to make this video transmitter we were looking to make something that would fit all use cases for analog video transmitters ever envisioned. Long range, racing, freestyle, wings, cars. You name it, the VTx will shine in this application! More features are still under development and they can be loaded via the TBS AgentX with the onboard USB port.
This makes it a perfect companion for any situation where you don't have any OSD, or want to benefit from the simplicity and clarity that the TBS OSD is known for.
BARCODES? BARCODES!! (PATENT PENDING)
The VTx is capable of processing the camera image. So we taught it to read barcodes! This means the VTx no longer needs to be transmitting to set channels, and setting channels can be done in the pits. It also means no more guesswork what channel the VTx is on, simply point it at the barcode of your choice and it will move to that channel or power level! There are many more exciting features coming with this technology, stay tuned and barcode on!
CRSF, SMARTAUDIO 2.1, PWM, PITMODE
CRSF is the defacto standard in FPV and racing drones, so it makes sense that this video transmitter can both understand as well as speak CRSF. For compatibility, the VTx also speaks SA 2.1 and has the teamrace-friendly pitmode feature. PWM controls allow you to use the VTx with any radio and product. For example, you may have it on your R/C cars, R/C motorcycles or other devices that don't have flight controllers or Crossfire and control the VTx button with a switch or button you have on the radio.
Operating Voltage 6V - 26V (2S - 6S)
Supply current (25mW) ~ 0.11A | (100mW) ~ 0.13A | (400mW) ~ 0.18A | (full power) ~ 0.24A
Operating Temperature watch for normal airflow
Video Input Impedance 75 Ohm
Dimensions 30 x 23 x 5.5mm
Antenna Connector u.FL socket
Video Format NTSC/PAL
Audio Microphone included
Output Power 14dBm (25mW), 20dBm (100mW), 26dBm (400mW), 29dBm (800mW)

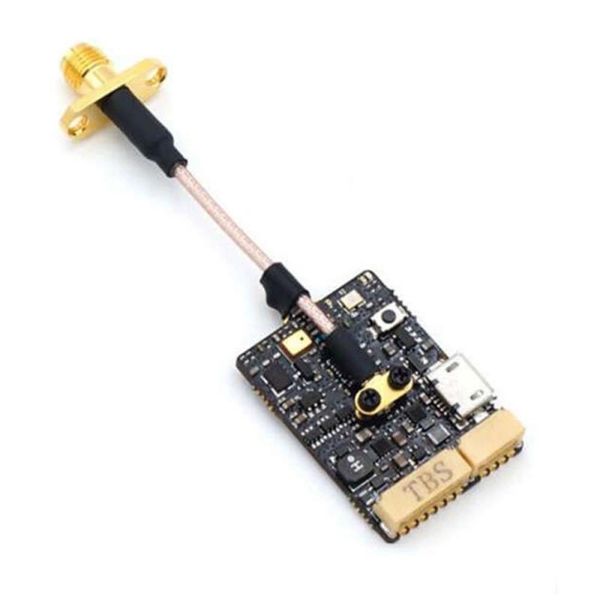

1x TBS UNIFY EVO 5G8 Video transmitter
1x u.FL pigtail SMA
1x Power, Camera and CRSF cables
